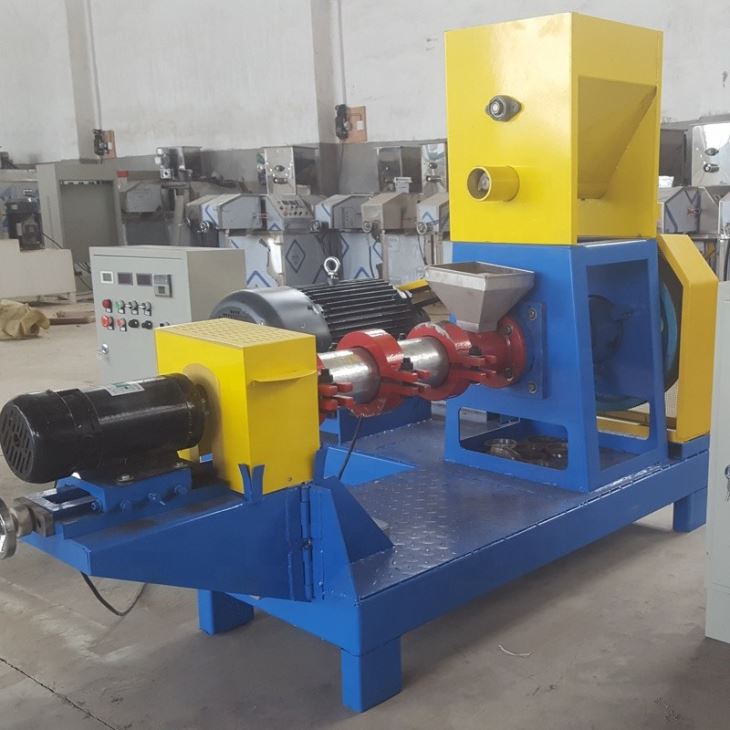

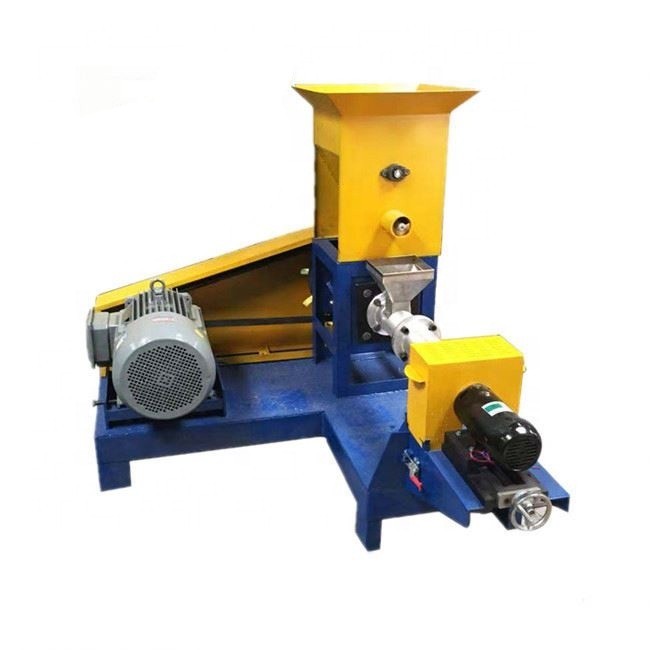

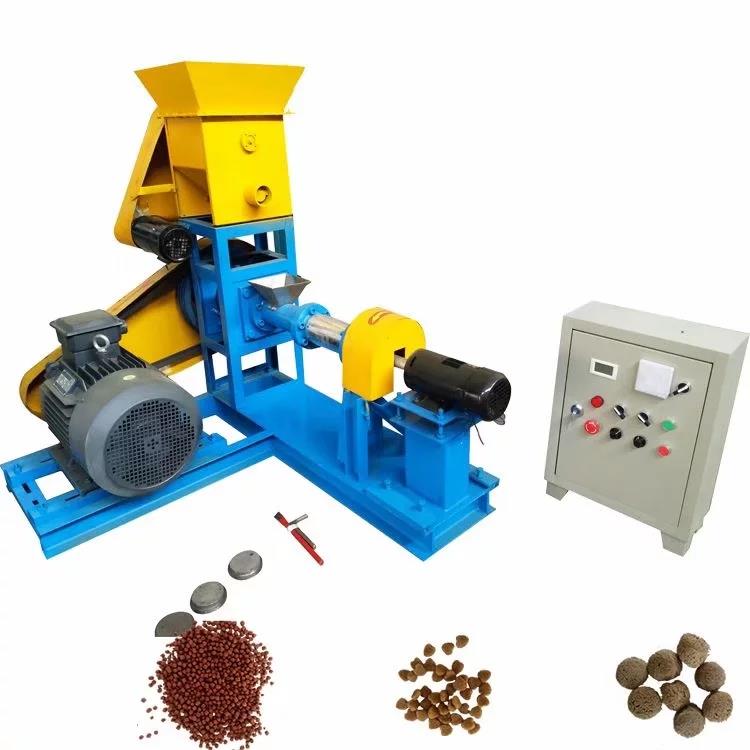

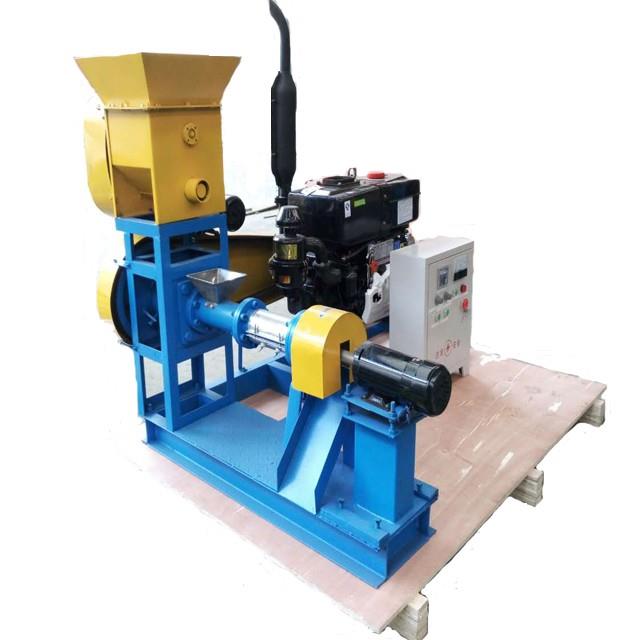

Features

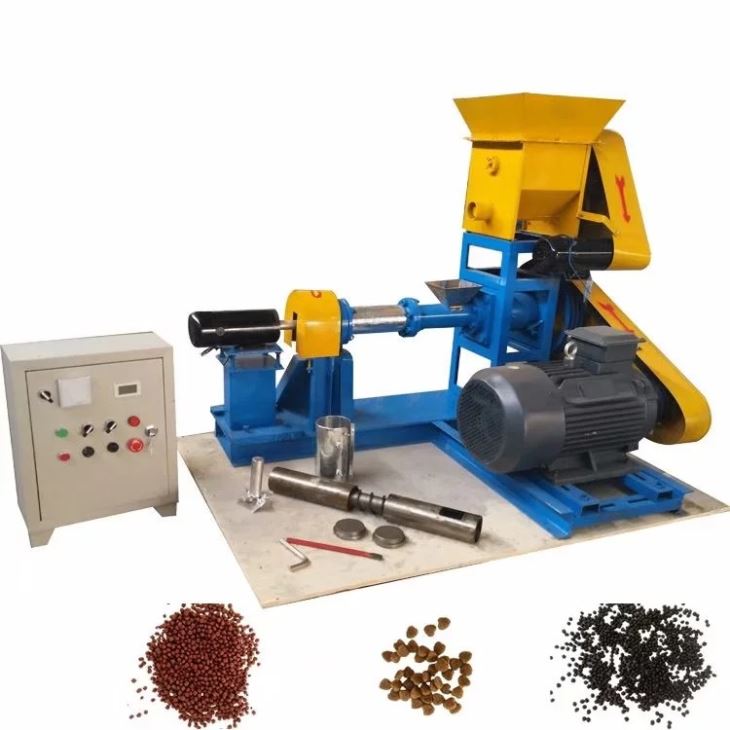

1).Our this dog food machine adopt international advanced technology, the pellets size are very even.
2).We can adjust the cutter speed and the dies to get the different diameter and different shape pellet.
3).The Electric heating device system can control the temperature accurately.
4).High temperature and high pressure can kill the salmonellosis is and bacterial infections make them easy to digest and absorb.
5).This line can produce high-protein fish feed.

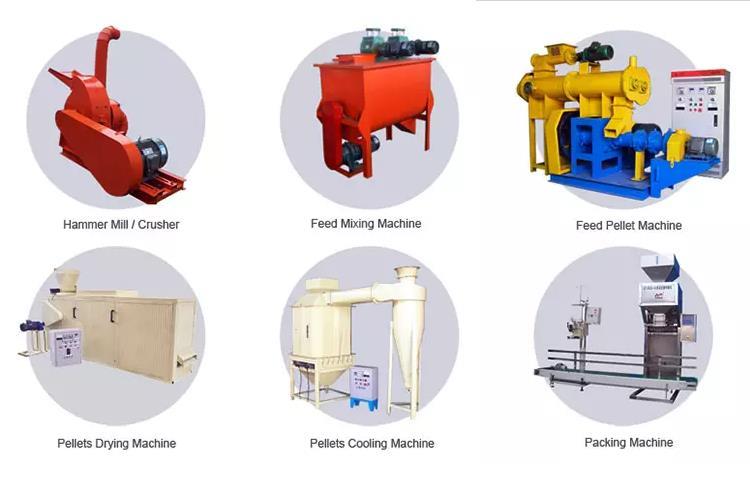

6) Flow chart: Material - Crushing - Mixing - Making pellet - Drying - Cooling - Seasoning - Packaging
Raw Material
The raw material is: Flour,corn meal,soybean meal,maize meal ,meat meal,bone meal,fish meal etc.
Fitness: about 60-80mesh which were crushed and mixed.
Moisture content: about 20%-25%.
Machine Specification:
Model | Capacity | Screw Diameter | Main Power | Feeding Power | Cutting Power |
GP-40 | 30-40kg/h | 40mm | 5.5kw | 0.4kw | 0.4kw |
GP-50 | 60-80kg/h | 50mm | 11kw | 0.4kw | 0.4kw |
GP-60 | 120-150kg/h | 60mm | 15kw | 0.4kw | 0.4kw |
GP-70 | 180-250kg/h | 70mm | 18.5kw | 0.4kw | 0.4kw |
GP-80 | 300-350kg/h | 80mm | 22kw | 0.4kw | 0.6kw |
GP-90 | 400-450kg/h | 90mm | 37kw | 0.4kw | 1.5kw |
GP-120 | 500-700kg/h | 120mm | 55kw | 0.4kw | 2.2kw |
GP-135 | 700-800kg/h | 133mm | 75kw | 0.4kw | 2.2kw |
GP-160 | 1200-1500kg/h | 155mm | 90kw | 0.75-1.1kw | 3.0kw |
GP-200 | 1800-2000kg/h | 195mm | 132kw | 1.5kw | 3.0-4.0kw |
Spare Parts
The spare parts including screw,sleeve,heating plate,cutter.
We will supply 3 sets moulds and one whole set wear parts ( 1 screw, 2 sleeve, 1 cutter, 1 heating plate) freely for you.
Packaging & Shipping
Packing: Export standard wooden case or Whole container
Delivery time:Withing 7-15working days.
Shipping:By sea
Our Services
