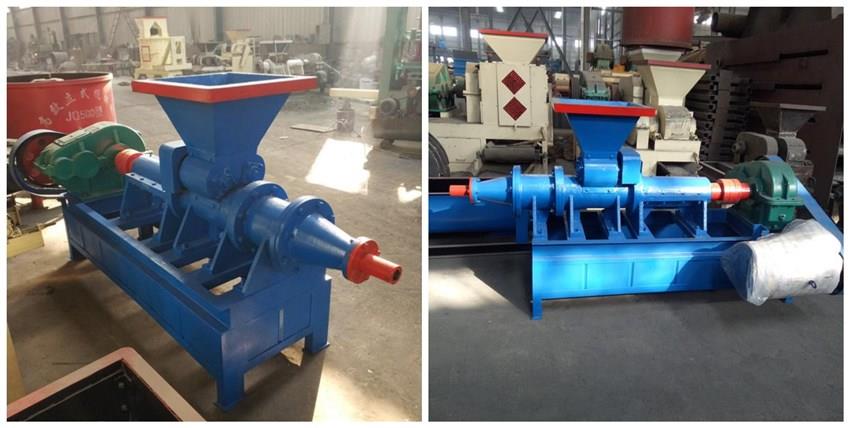

Charcoal Sticks Briquette Extruder is the briquette machinery,which using the principle of screw extrusion to compress the coal powder into a predeter mined shape with a certain intensity.after the coal powder poured into machine chamber,it bears tremendous pressure.With the help of all kinds of shaped molds,it will be shaped into certain shapes.Now, our factory has developed and researched double-head and four-head coal extruder.It not only improve production capacity largely,but also give the buyers more choices.This kind machine not only can accept coal powder,but also charcoal powder coconut shell powder and so on.
Working Principle
Rotating impeller from the charging port clip coal and put coal forward,coal is gradually compressed into tightly closed particles,while generating relatively large agitation and mixing.At this time between the coal particles and between the particles and the blades have a strong simplified friction and shear,while under the action of heat generation, the coal temperature rise,water and binder more uniform,coal plasticity also greatly increased, then after the constraining effect of the cone mold, compressed between the coal particles more closely, and then pressed into a flat mold parts, and molded out from Energy Saving Coal And Charcoal Sticks Briquette Extruder Machine
Data Parameters
|
Model |
Capacity |
Roating speed |
Power |
Model size |
Dimension(m) |
Weight |
|
ET-140 |
2-3(t/h) |
46-60(r/min) |
11KW |
30-40mm |
1.4*0.9*0.6 |
1.5t |
|
ET-180 |
3-4(t/h) |
38-50(r/min) |
22KW |
30-60mm |
1.6*1.1*1.3 |
2.4t |
|
ET-210 |
4-5(t/h) |
30-40(r/min) |
30-37KW |
30-80mm |
1.9*1.4*1.45 |
3.5t |
|
ET-300 |
6-8(t/h) |
40-50(r/min) |
40-50KW |
30-100mm |
2.5*1.6*1.65 |
6t |
Characteristics
(1) Briquette Extruder Machine use hardened reducer,small size,high load carrying capacity.
(2) Thick internal impeller blade design,impeller and liner using wear-resistant cylinder body made of cast materials, life expectancy increased 4-5 times than ordinary materials.
(3) Charcoal Sticks Briquette Extruder head can be replaced by a wear-resistant alloy steel,also easy to replace.
(4) Head and cylinder use splicing forms so it can be opened when the overhaul,replacement of internal impeller and cylinder liner is very convenient.
The finished products
Shapes:The shapes can be various, such as finger shape,cubic shape, bar, hexagon,etc.
Features:High density,high hardness,stable shape,good performance,long burning time,convenient
to store and transport
Extruder Machine make many special shapes by your requirements
The Transport
In the processing of transport, Energy Saving Coal And Charcoal Sticks Briquette Extruder Machine is packaged as follow ways
(1)Nude packaging or free fumigation plywood case for single machine.
(2)Export standard container 20GP,40GP,40HQ,etc. for production line.
(3)Other packaging according to your special requirement.
Payment and Delivery terms
(1).Payment:TT,LC,Western union or other payments
(2).Packing: Naked or can be customized
(3).Allocate and allot according to supplier’s regulation at random.
(4).Liability for breach of contract: Resolve through consultation.
(5).Other unaccomplished matters, are resolved through consultation separately by both sides
Skill standard, Quality guarantee
(1).The technical standard consults the standard of supplier’s enterprise.
(2).Equipment must be100% brand new when leaving factory.Malfunctions which are caused by manufacturer’s default and quality will be responsible by manufacturer.Other malfunctions which are caused by operation mistake, man-made problem,etc will be responsible by client herself.
