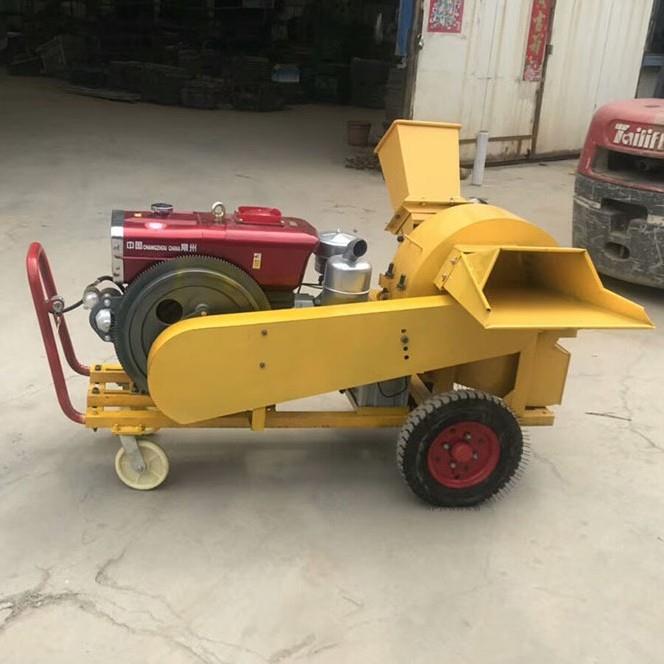

This series mobile sawdust machine is the idea equipment for advanced production of edible mushroom cultivation,biomass fuel pellet making. It can process the wood , branch into sawdust or powder one time. which is new style and multipurpose machine, it can be crushing 10 mm-30 mm (Diameter / Thickness) biomass materials, after crushing, the finally powder can reach to 1mm-8mm ( adjustable ), needn't to use any other equipments.
Feature
●With the advantages of small volume , small space covering ,
●Mobile sawdust machine can drive by electricity, diesel engine
●Also can equipped with wheel ,move around do moving work.
●Low investment , high return , low energy consumption ,
●High efficiency , easy for use
●Best machine for develop edible mushroom,biomass pellet making to get rich .
●Can be used for making raw materials for shaving board , sawdust board and MDF .
Technical Index
|
Model No. |
H420 |
H600 |
H800 |
H1000 |
|
Disc Dia.(mm) |
400 |
600 |
800 |
1000 |
|
Speed(r/min) |
2600 |
2600 |
2300 |
2000 |
|
Knives (pcs) |
4 |
4 |
6 |
4-6 |
|
Feeding size (mm) |
150*180 |
200*200 |
250*300 |
300*300 |
|
Output(kg/h) |
300-600 |
800-1000 |
1500-2000 |
2000-3000 |
|
Motor power(kw) |
7.5-11 |
18.5-22 |
30 |
75+7.5 |
|
Weight(kg) |
350 |
400 |
1500 |
1800 |
|
Dimension( m) |
1.2*0.85*0.9 |
1.5*1.0*1.1 |
2.1*1.1*1.3 |
2.6*1.1*1.5 |
Mobile sawdust machine includes the hammer crusher and disc wood crusher .
Hammer crusher is fit for wood diameter less than 5cm.
Blade crusher is fit for wood diameter 5-30cm.
No matter hammer crusher or wood crusher, it can be electric type or diesel type.
Note
The productivity can vary a food according to type and moisture content, as well as the size of the holes in the sieve.
It could be mobile wood crusher type as your demand.
If need cyclone can equipped for blade crusher,and hammer mill ,at client option.
|
|
| Blade Crusher | Hammer Mill |
Application
Widely used in planting, paper-making, density board, biomass power plant, garden pruning, burning wood, chopped edible fungus culture, etc. Suitable for the pulp mill, paper mill, forest farm, garden planting, wood factory
Raw Material
The wood crushers are for grinding the Bio-mass like straw, coconut shell , stalk and wood chip, tree branch and forest waste to be powder of less than 3-5mm, which is right size before pelletizing and briquette. It is also ideal machine for farming material like dry or fresh seeding of yam, peanut, rice and other plants, husks, maize, wheat, beans of all.
Usage of Sawdust
●The base raw material for cultivated edible fungus/Edible mushroom cultivation;
●Production of biomass fuel pellet/wood charcoal:
●For Civil heating burning ,industrial boilers ,replace of coal, heavy oil, natural gas
●Medium,small particleboard and fibreboard production:
●Particleboard, plywood, high density board, sawdust board, MDF, etc.
●Mosquito-repellent incense making;
●Paper making raw material.
Package
1. Machines will be packed in standard and quantities boxes ,the production will have a safe and complete journey from our factory to your place.
2. Packaging details standard export wooden case or in container.
Shipping
1. We will serve your shipping method about ocean transport ,air lift ,freights and so on.
2. The delivery time is usually 7-15 working days upon receipt of your payment.
