Garden chipper shredder is widely used to cutting tree branch, wood logs, garden waste branch and other forestry wood waste into small wood chips, the final product can be used as a fuel supply for energy and heating, it also can be used in MDF board and paper production area for industrial purposes.
This machine can be driven by diesel engine or electric motor, the customers have more choices.is the best way to get rich for developing such machines.
Feature Point
Function: Crushing wood,Agro waste,branches into small chips .
Final Size: Adjustable
Power: Motor ,Diesel engine ,Mobile ,At option .
Machine Color: As per client requirement .
Technical Index
Model | AK-6130 | |
Engine type | Diesel engine | Motor |
Power | 28 HP | 22 KW |
Cutter drum Dia. | 300 | 300 |
Start way | Electric start | Air switch |
Speed | 2600 | 2900 |
Blade | 3 | 3 |
Feed press roller Dia. | 280 | 280 |
Feed roller power | Hydraulic | Hydraulic |
Feeding size (mm) | 300*200mmm | 300*200mm |
Tires | 165/70r13 | 165/70r13 |
Discharge Direction | 360° | 360° |

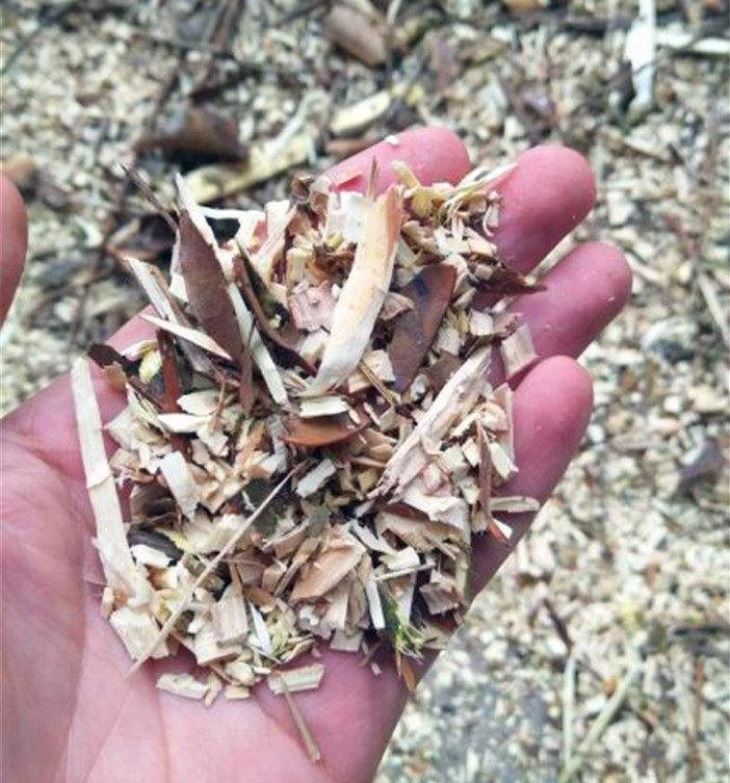

Application for Crushed chips
●Organic fertilizer: free decay into surface can be formed a good organic fertilizer.
●Flower potting soil packing: coverage of bare soil to prevent dust purification air organic fertilizer additive
●Mushroom cultivation base: apply to all kinds of mushroom cultivation recycling.
●Animal feed: freshwater fish or natural organic pollution of plant-eating animal feed.
●It can also be used in landscaping, paper mill, charcoal mill, feed mill, wood-based board factory, incense factory and so on .
Related Wood Chipper
Introduction of industrial disc wood chipper is a kind of special equipment,which is producing wood chips. Convert wood logs,tree branch into small chips.
Application
The wood chipper widely used in spinning, paper mill, shaving board factory, fiber board factory. Could cut the log, undersized log into even length,smooth cut, even depth chips,it also can be used to cut branches,board and so on.
 |  |  |  |
| Engine wood chipper | Electric wood chipper | Round Disc Chipper | Diesel Disc Chipper |
Raw material
All kinds of wood, timber scraps,branches,wood chips,edge material,tree bark,bamboo skin and other raw material into sawdust once.
Technical Parameter
Model | Diameter(mm) | Size of inlet(mm) | Quantity of blades | Working Capacity | Power (kw) | Rotating speed |
AC-500 | 1500*650*850 | 200*180 | 4 | 1-2t/h | 15 | 2200r/min |
AC-600 | 1500*700*1000 | 230*210 | 4 | 2-3t/h | 18 | 2200r/min |
AC-700 | 1550*750*1050 | 240*240 | 4 | 2.5-3t/h | 22 | 2100r/min |
AC-800 | 1600*800*1100 | 260*260 | 4-6 | 3.5-4t/h | 37 | 2000r/min |
AC-1000 | 2000*1100*1300 | 300*300 | 4-8 | 4-5t/h | 45 | 2000r/min |
Warehouse
