Blade sawdust crusher is an ideal crusher for industries such as chemical industry, building materials, medicine, health care, breeding, food, mosquito coils and so on. An popular Wood Sawdust machine for making wood pellets,wood charcoal, and cultivation mushroom etc.(Note that wood shredders are not suitable for crushing of inflammable and explosive materials)
Feature
●Compact structure and considerable layout;
●Wood Sawdust machine can equipped with wheels.move around.
●Crushing wood into 1-40mm ,size adjustable at option.
●Easy to install,operate and maintain;
●Product good quality sawdust size can be adjusted by changing screen(sieve);
●Can Install the wheels, Cyclone and make other customized designs for customers;
●Can use electrical motor/diesel motor according to customer's needs;
●Less space occupying,high production efficiency,low investment,high profit return.
Technical Index
Model No. | H420 | H600 | H800 | H1000 |
Disc Dia.(mm) | 400 | 600 | 800 | 1000 |
Speed(r/min) | 2600 | 2600 | 2300 | 2000 |
Knives (pcs) | 4 | 4 | 6 | 4-6 |
Feeding size (mm) | 150*180 | 200*200 | 250*300 | 300*300 |
Output(kg/h) | 300-600 | 800-1000 | 1500-2000 | 2000-3000 |
Motor power(kw) | 7.5-11 | 18.5-22 | 30 | 75+7.5 |
Weight(kg) | 350 | 400 | 1500 | 1800 |
Dimension( m) | 1.2*0.85*0.9 | 1.5*1.0*1.1 | 2.1*1.1*1.3 | 2.6*1.1*1.5 |
Application
1.The base material of edible fungus/edible mushroom cultivation;
2.Production of biomass fuel pellet/wood charcoal;
3.Medium and small particleboard and fibreboard production: Particleboard, plywood, high density board, sawdust board, MDF, etc.;
4.Mosquito-repellent incense making;
Raw Material
Blade sawdust crusher suitable for the crushing of the following materials: bamboo powder, husk, Chinese herbal medicine, bark, leaves, wheat bran, konjac, black stalk, rice husk, corn cob, straw, starch, grain, shrimp skin, fish meal, Shell, seaweed, dehydrated vegetables, hawthorn, dried ginger, garlic slices, pumpkin powder, seasoning, jujube, paper, circuit board, plastic, chemical raw materials, seawater products, condiments, feed, mica, graphite, bentonite, perlite, Distillers grains, furfural, cakes, charcoal, activated carbon, cellulose, potato dregs, tea, hair, soybean meal, cotton, refined cotton, cowhide, sheepskin, plant roots, stems, leaves, flowers, fruits, various edible fungi, etc.
Usage of Final Product
●The base raw material for cultivated edible fungus/Edible mushroom cultivation;
●Production of biomass fuel pellet/wood charcoal:
●For Civil heating burning ,industrial boilers ,replace of coal, heavy oil, natural gas
●Medium,small particleboard and fibreboard production:
●Particleboard, plywood, high density board, sawdust board, MDF, etc.
●Mosquito-repellent incense making;
●Paper making raw material.
Hot Tags: blade sawdust crusher, China, manufacturers, factory, cheap, low price, made in China

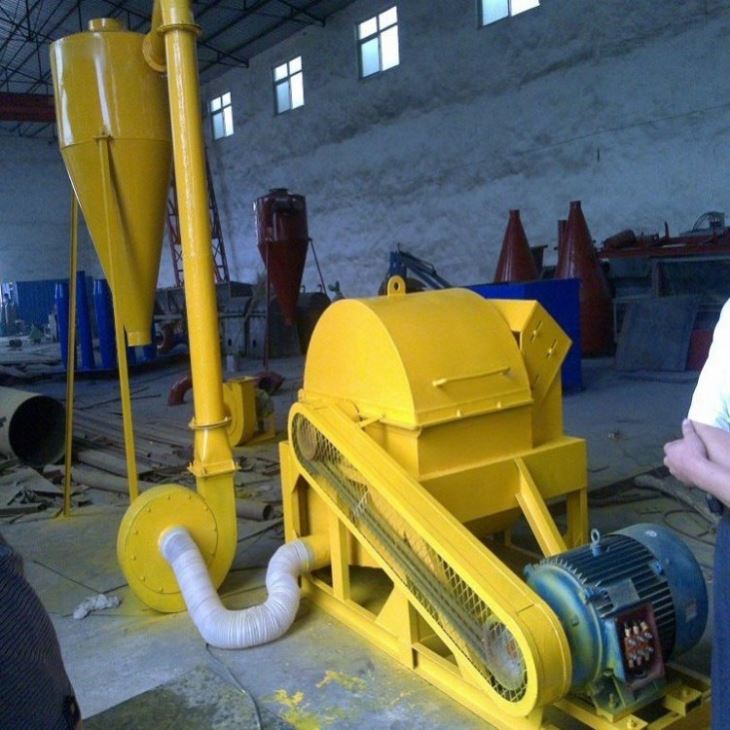

Blade sawdust crusher convert waste wood into sawdust
