Sawdust Hammer Mill is used for crushing small diameter raw materials, which are no more than 100mm such as corn straw,tree branches and so on. after crushing, the diameter of the final products could be 3-5mm.
Feature
●Machine can drive by Motor,Diesel,Gasoline Engine.
●Offering 220V and 380V,Accept Customized Voltage.
●Simple and Automatic Operation.
●Easy Maintainance.
●It can be combined wheels, no limitation on the places.
●It realizes the perfect combination on the chipping and crushing.
●Hammer Mill can equipped with airlock, cyclone ,Offering customized design.
Option On Raw Material
Hammer Mill is the most ideal milling equipment of all kinds of wood pieces, tree bark,carton box, leaves, twigs,straw, grass, stalk, tree branches, waste cardboard, bamboo, wood scrap, corn stalk, peanut shell, wheat stalk, wood fuel, cotton stalk, biomass shell and so on, which can crush the raw material into small particles with size 3~5mm.
Operation Attention
In order to avoid clogging, humidity of crushed material better below 50%.
Work Principle
When raw materials enters into the wood hammer mill , grinded by the beat , fraction power from the high speed rotating hammers , then required power screened by the sieve .
Technical Parameter
|
Model No. |
FS-420 |
FS-500 |
FS-600 |
|
Disc Dia.(mm) |
420 |
500 |
600 |
|
Feed hole (mm) |
180*160 |
200*180 |
220*200 |
|
Knives (Pcs) |
4 |
4 |
4 |
|
Output (t /h) |
1.5 |
2.5 |
3 |
|
Motor power(kw) |
15 |
22 |
30 |
|
Weight |
350 |
400 |
550 |
|
Dimension |
1.6*0.8*0.8 m |
2*1.25*0.95 m |
2.1*1.4*1.2 m |
Remark
If need machine in large output ,we can customized make.
Advantages

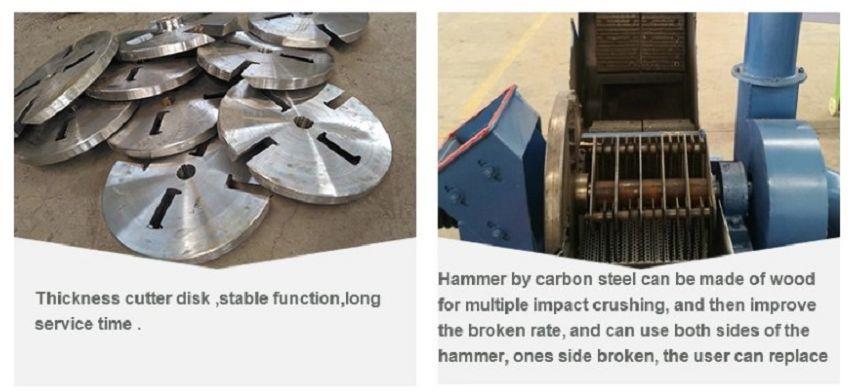

●This multi-function grinder combines the Advantages of hammer wood grinder and blade disc wood grinder.
●Raw material can be scrap, branches, bark, leaves,roots, branches, bark, peanut shells, corncob, corn stalks, peanut flesh, melon flesh, straw, wheat straw and other materials and logs are crushed into sawdust or chips.

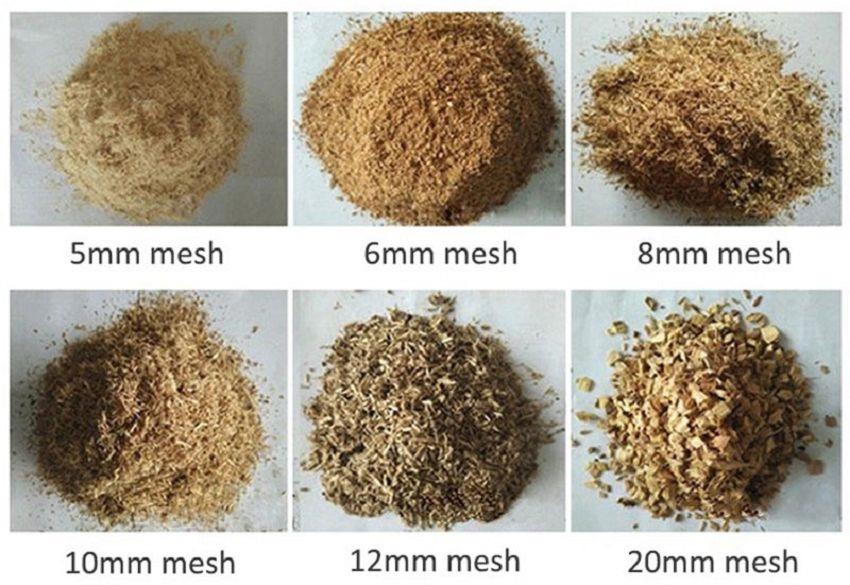

●According to the different size of screen mesh,the machine can cutting and grinding different effect.Minimum effects size reachability 0.5mm.
Final Product
●Can be used as raw material for mushroom cultivation.
●Can be used for making pellets for bio fuels or animal feed.
FAQ
If you're interested in our equipment, please kindly reply us the following question:
1. What's the wood hammer mill production capacity do you want?
R:We can supply hammer mill or hammer mill production line with output from 0.5-20t/h.
2. What's your raw material situation to crush?Size and Moisture.
R:Our hammer mill can crush all kinds of wood chips,wood branch,corn cob,straw,etc,advise moisture <60%.
3. What's the final crushed product size do you want?
R:Our hammer mill can match screen 2mm-12mm,final product powder or particle product.
4. What's your country industrial electricity voltage?
R:General standard motor in China work under 380V,50Hz,3Phase,if not match,tell us we can modify motor.
