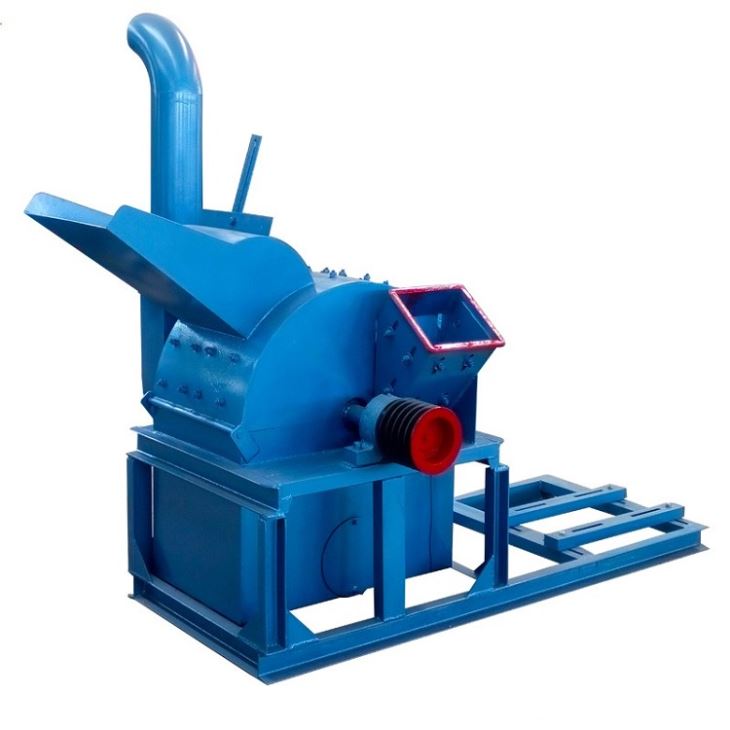

Coconut shell hammer mill is used to crush grain,like corn,wheat,bean,millet,etc.It also can crush coal,charcoal,branch,straw,stalk.This machine is multifunction.
Features
- High-efficiency and large-capacity grinding
- Easy and fast to clean or replace the screen
- Screen and hammer is durable by heat treating.
- Optional to equip with the rotary feeder
- Double guided sliding doors on both sides provide user-friendly access to the grinding chamber
- Widely used for grinding grain into a wide range of particle sizes
- Widely used in flour mill, feed mill and biomass industries
Technical Data
Model | FS-500 | FS-600 | FS-800 | FS-1000 | FS-1300 | FS-1500 |
Feeding Size(mm) | 500*280 | 600*300 | 800*350 | 1000*450 | 1300*450 | 1500*450 |
Crushing chamber size(mm) | 500*500 | 600*600 | 800*700 | 1000*800 | 1300*800 | 1500*800 |
No. of hammer(pcs) | 30/20 | 40/30 | 50/30 | 66/48 | 72/54 | 90/72 |
Hammer size(mm) | 180*60*10 | 180*60*10 | 230*60*10 | 230*60*10 | 230*60*10 | 230*60*10 |
Power(Kw) | 22-30 | 30-37 | 37-45 | 55-75 | 75-90 | 90-110 |
Fan power(Kw) | without | without | 7.5 | 11 | 15 | 15 |
Capacity (Kg/h) | 500-800 | 800-1200 | 1500-2000 | 2000-3000 | 3000-4000 | 4000-6000 |
Thanks so much for you taking time to browse our Coconut shell hammer mill. Any further questions, please feel free to contact us and we are ready to so service for you!
