Wood pellet mill machine is equipped with ring die of 5-9 die hole, can choose according to the needs of different users, and ring die can be customized.

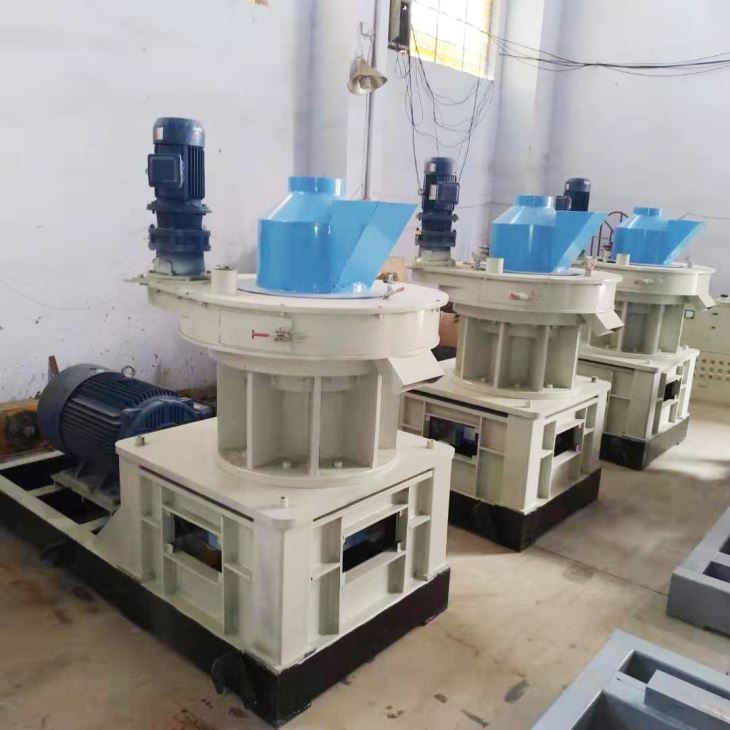

Vertical biomass wood pellet mill machine adopts frequency conversion motor feeder,overload protection device and the oil pump lubrication system.
With a driven gearbox to keep it work stably.
Biomass wood pellet mill machine apply to small and medium-size biomass pellet enterprise,easy to operate,less feeding and quick effect.
For producing large quantity of wood pellets.
Advantage
●Transmission efficiency is as high as 98% above.
●The gear is hot processing, improve the tooth surface hardness, tooth surface carburizing treatment, carburizing layer up to 2.4 MM increase abrasion resistance, prolong service life, silent fine grinding tooth surface edge processing, make the operation more quiet, smooth.
●Spindle and conjoined hollow shaft connection with alloy structure, fatigue resistance, wear resistance.
●Body composed of CNC finishing, zero error.
●Bearing with wear-resistant and heat-resistant fluoro rubber oil seal, equipped with lubricating oil return system, automatic oil lubrication.
●Pellet formation system adopts high quality silent bearing bearing, equipped with thin oil circulation cooling lubrication system.
●Ring die mould adopts stainless high nickel aluminium manufactured.
Technical Parameter
|
Die Dia (MM) |
Pellets Dia (MM) |
Dimension (MM) |
Weight (T) |
Capacity (T/H) |
Power (KW) |
|
|
K-450 |
450 |
Φ4-12 |
2400*1000*2100 |
4.5 |
0.8-1 |
75+1.5+0.55 |
|
K-560 |
560 |
Φ4-12 |
2600*1300*2300 |
6.1 |
1-1.5 |
90+1.5+0.55 |
|
K-650 |
650 |
Φ4-12 |
2950*1300*2450 |
9.5 |
1.5-2 |
160+1.5+0.55 |
|
K-850 |
850 |
Φ4-12 |
3350*1450*3180 |
14.5 |
2.5-3.5 |
220+3+0.55 |
|
K-1050 |
1050 |
Φ4-12 |
4200*1850*3700 |
22.5 |
4-6 |
315+5.5+3 |
Application of pellet
Home heating stoves.
Hot water boilers and industrial boilers,
Biomass power plants and etc.
Remarks
Wood pellet machine use process if use undeserved,can make wood pellet machine appeared some faults,it will affect the normal production of the wood pellet machine, makes the production capacity decline, so do what work to avoid these problems?Here is Anyang Ainuok for you by us to summarize:
Select suitable models according to their own raw materials, mainly concentrate selected wood pellet machine, crude fibre more than 50% select wood pellet machine, if the crude fiber more than 50% use wood pellet machine has a great influence on the capacity and the machine itself.
Custom-made compression ratio of the mold according to your own raw materials, because of different raw materials suitable for different mold compression ratio, if the compression ratio wrong, the capacity and pellets quality are influenced.
Keep the wood pellet machine clean.Users in use is often do not pay attention to maintain the cleanness of pellet machine, it has accelerated pellet machine service life, so we must keep the pellet machine clean, so that it can improve the service life of the pellet machine.
Regular maintenance inspections pellet machine,found that the problem handled in time, if unchecked,later more is not easy to repair.
Do these aspects will make your sawdust pellet machine with time will be longer, create more economic benefits for you! Ainuok Machinery equipment specializing in the production of wood pellet machine,
welcome you to come to choose and buy!
